SOLDER COAT CO.,LTD.
Low melting / Lead-free solder paste LT LF 140
A solder paste for which soldering is possible from a reflow peak temperature of 190°
| Viscosity(Pa·s) | 180-220 |
|---|---|
| Thixotropic Index | 0.60-0.70 |
| Halogen content(%) | <0.05 |
| Insulation resistance(Ω) | >1.0*109 |
| Copper corrosion test | Pass |

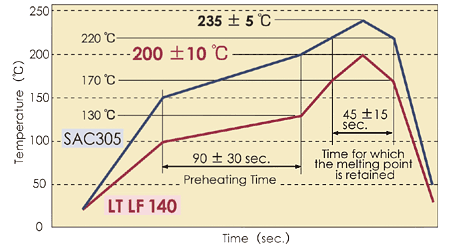

Comparison of reflow profile

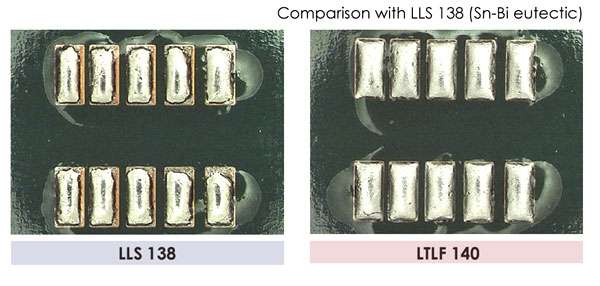

Comparison of soldering characteristic (wettabillity)
